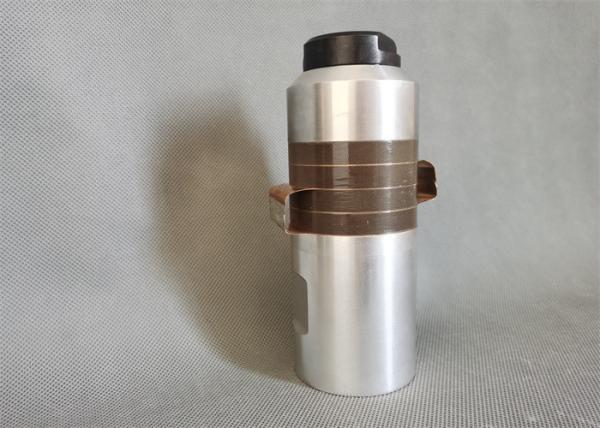

2200 Watt Ultrasound Transducer With Grey Ceramics 15Khz

Brand Name : QRsonic

Model Number : QR-6015-4BZG

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : 3 workdays

Packaging Details : Packed in carton

Products Name : Ultrasonic Welding Transducer

Frequency : 15 khz

Output power : 2200 watt

Joint bolt : M20*1.5

Ceramic disc Diameter : 60mm

Qty of ceramic discs : 4pcs

Capacitance : 10-12nf

Amplitude : 10 um

Contact Now

15Khz 2200w Ultrasound Ceramics Transducer with Grey Ceramics

Description:

The transducer consists of a housing, a matching layer, a piezoceramic disk transducer, a backing, an extraction cable, and a Cymbal array receiver. The piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with polarization direction polarization. The Cymbal array receiver consists of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets. The working distance of the invention is greater than 35 m, the frequency bandwidth reaches 10 kHz, and the long-distance target moving at high speed can be detected.

An electrostrictive transducer consisting of one or more disks of piezoelectric material sandwiched between two metal sections.

The entire assembly is resonant at a predetermined frequency, and its length is acoustically equal to one-half wavelength at the applied frequency.

Specifications:

Model QR-6015-4BZG
Frequency 15 khz
Output power 2200 watt
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 10-12nf
Amplitude 10 um
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

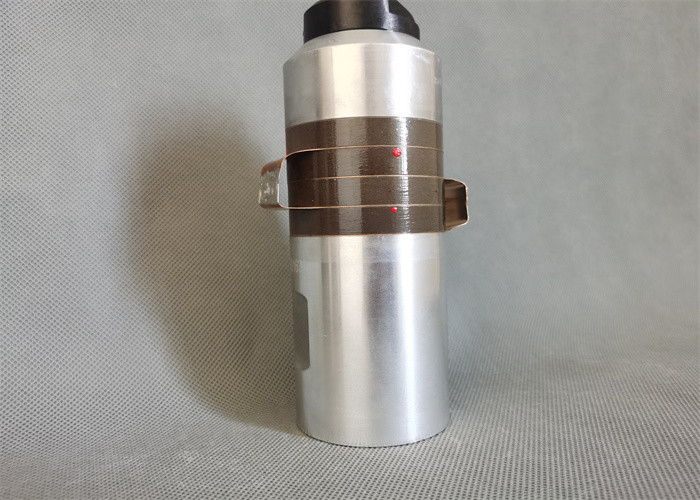

15Khz 2200w Ultrasound Ceramics Transducer with Grey Ceramics

2200 Watt Ultrasound Transducer With Grey Ceramics 15Khz2200 Watt Ultrasound Transducer With Grey Ceramics 15Khz
