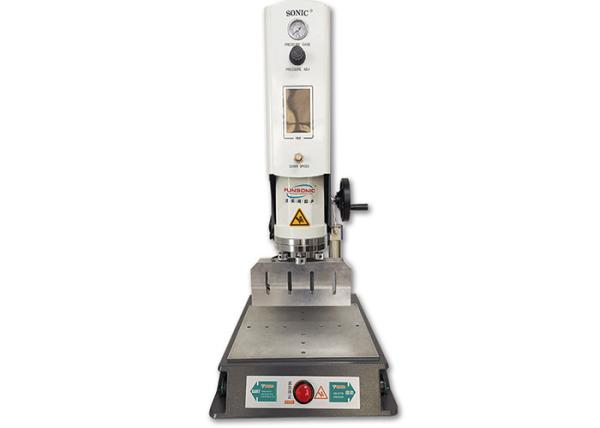

2000w Ultrasonic Polyester Vlies And Glass Fiber Welder
Description:
Ultrasonic plastic welding is the joining or reforming of thermoplastics through the use of heat generated from high-frequency mechanical motion. It is accomplished by converting high-frequency electrical energy into high-frequency mechanical motion. That mechanical motion, along with applied force, creates frictional heat at the plastic components’ mating surfaces (joint area) so the plastic material melts and forms a molecular bond between the parts.
Plastic welding is the process of creating a molecular bond between two compatible thermoplastics. Welding offers superior strength, and reduces cycle times. There are three main steps to any weld: pressing, heating, and cooling. Plastic welding processes are primarily differentiated by their heating methods. The application of force and allowances for cooling are mechanical considerations which, may vary from machine to machine within the general process category.
Parameters:
| Model | FSWD-DS400 |
| Name | 20Khz Ultrasonic Plastic Welding Machine |
| Frequency | 20Khz |
| Power | 3000w |
| Input Voltage | 220V±10%,50/60Hz |
| Welding Stroke | 75mm |
| Materials of horn | Aluminum or Titanium Alloy |
| Application | Industry, Automotive, Electronics, and Healthcare etc |
Advantage:
1. It is a fast, clean, efficient, and repeatable process.
2. It produces strong, integral bonds while consuming very little energy, and no solvents, adhesives, mechanical fasteners, or external heat are required.
3. The contact surfaces melt/fuse upon welding, and it produces a very clean and strong joint.
4. Reduce maintenance downtime by eliminating glue applicator and spray nozzles from the process.
5. Finished assemblies are strong and clean.
