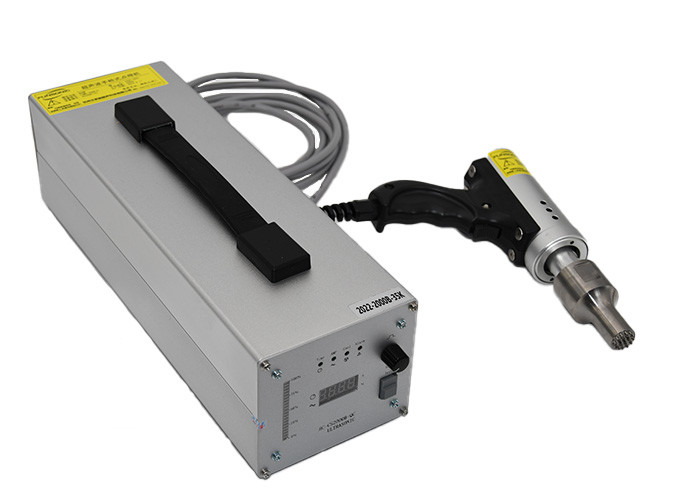

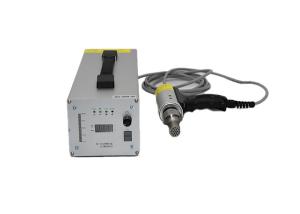

Ultrasonic Riveting Handpistol Plastic Welding Device
Description:
Ultrasonic spot welding is achieved by placing the welded components in the position where they need to be welded, and then applying ultrasonic vibration and a certain amount of pressure to generate high-frequency vibration on the contact surface between two welded components, thereby achieving welding.
Ultrasonic spot welding is widely used in fields such as electronic assembly, microelectronic packaging, battery manufacturing, and medical devices. It is suitable for welding small components, thin film materials, and temperature sensitive components, with efficient, accurate, and reliable welding effects.
Parameters:
| Model | FSWD-3508-H |
| Name | 35Khz Ultrasonic Spot Welder |
| Frequency | 35Khz |
| Power | 800w |
| Input Voltage | 220V±10%,50/60Hz |
| Working Mode | Button or Foot switch |
| Welding Thickness | 0.1-5mm |
| Materials of horn | Aluminum or Titanium Alloy |
| Application | Industry, Automotive, Electronics, and Healthcare etc |
Features:
1. Efficiency: Ultrasonic spot welding can quickly complete the welding process and improve production efficiency.
2. No need for external solder: Ultrasonic spot welding usually does not require the use of flux or solder paste, reducing material consumption and environmental pollution during the welding process.
3. No heat affected area: The heat affected area of ultrasonic spot welding is very small, with almost no heat conduction, which can avoid thermal damage to surrounding materials.
4. Accurate control: Ultrasonic spot welding can accurately control the welding time, pressure, and amplitude, suitable for applications with strict requirements for the welding process.
